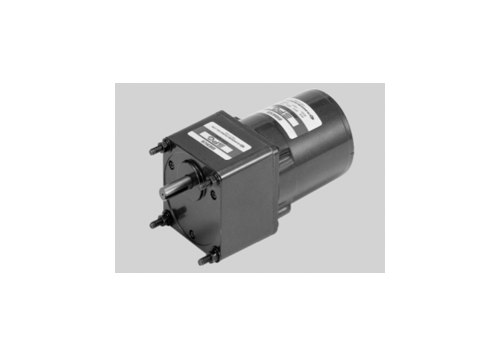

Roller/Bearing/Motor
SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Current | Speed | Torque | |||||||||||
(W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
90 | S9R40GA() S9R40GA()(TP) S9R40GA()CE | 4 | 40 | 1 ø 110 | 60 | 30Min. | 1.00 | 1600 | 2.50 | 0.250 | 3.50 | 0.350 | 15.0 |
S8R25GB S8R25GB(TP) S8R25GBCE | 4 | 40 | 1 ø 220 | 60 | 30Min. | 0.46 | 1600 | 2.50 | 0.250 | 3.50 | 0.350 | 3.5 | |
S9R40GC() S9R40GC()(TP) S9R40GC()CE | 4 | 40 | 1 ø 100 | 50 | 30Min. | 0.84 | 1300 | 3.00 | 0.300 | 2.80 | 0.280 | 15.0 | |
60 | 1.00 | 1550 | 2.60 | 0.260 | |||||||||
S9R40GD() S9R40GD()(TP) S9R40GD()CE | 4 | 40 | 1 ø 200 | 50 | 30Min. | 0.39 | 1300 | 3.10 | 0.310 | 2.80 | 0.280 | 3.5 | |
60 | 0.47 | 1550 | 2.60 | 0.260 | |||||||||
S9R40GE() S9R40GE()CE | 4 | 40 | 1 ø 100 | 50 | 30Min. | 0.86 | 1300 | 3.10 | 0.310 | 2.90 | 0.290 | 15.0 | |
60 | 1.00 | 1500 | 2.60 | 0.260 | |||||||||
1 ø 115 | 60 | 1.00 | 1550 | 2.70 | 0.270 | 12.0 | |||||||
S9R40GX() S9R40GX()CE | 4 | 40 | 1 ø 220 | 50 | 30Min. | 0.40 | 1250 | 3.20 | 0.320 | 3.00 | 0.300 | 3.0 | |
1 ø 240 | 0.42 | 3.40 | 0.340 | 3.20 | 0.320 |
MODEL | GEAR RATIO | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 500 | 416 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | 7.5 | |
S9KB□B() | kg-cm | 8.3 | 9.9 | 13.8 | 16.5 | 20.7 | 24.8 | 27.5 | 34.4 | 41.3 | 49.6 | 49.6 | 62.1 | 74.5 | 89.4 | 99.3 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
N-m | 0.813 | 0.970 | 1.352 | 1.617 | 2.029 | 2.430 | 2.695 | 3.371 | 4.047 | 4.867 | 4.861 | 6.086 | 7.301 | 8.761 | 9.731 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 |
MODEL | GEAR RATIO | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | |
S9KB□B() | kg-cm | 6.8 | 8.2 | 11.3 | 13.6 | 17.0 | 20.4 | 22.7 | 28.4 | 34.0 | 40.8 | 40.9 | 51.1 | 61.3 | 73.6 | 81.8 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
N-m | 0.666 | 0.804 | 1.107 | 1.333 | 1.666 | 1.999 | 2.225 | 2.783 | 3.332 | 3.998 | 4.008 | 5.008 | 6.007 | 7.213 | 8.016 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 | 9.800 |

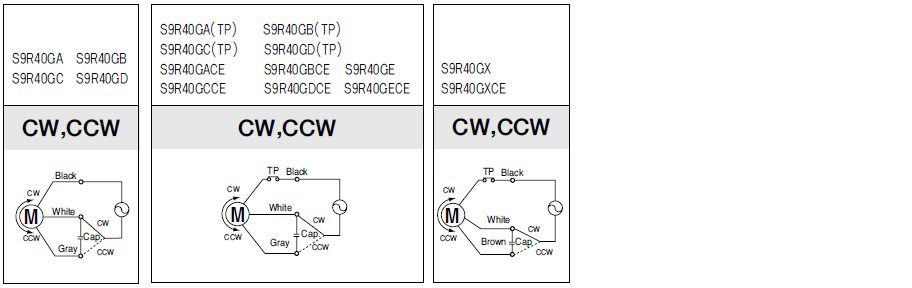

회전방향은 MOTOR의 SHAFT 끝쪽에서 볼 때의 회전방향입니다.
