Roller/Bearing/Motor
SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Current | Speed | Torque | |||||||||||
(W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
90 | S9R60GA() S9R60GA()(TP) S9R60GA()CE | 4 | 60 | 1 ø 110 | 60 | 30Min. | 1.60 | 1600 | 3.80 | 0.380 | 7.00 | 0.700 | 25.0 |
S9R60GB() S9R60GB()(TP) S9R60GB()CE | 4 | 40 | 1 ø 220 | 60 | 30Min. | 0.75 | 1600 | 3.80 | 0.380 | 7.00 | 0.700 | 6.0 | |
S9R60GC() S9R60GC()(TP) S9R60GC()CE | 4 | 60 | 1 ø 100 | 50 | 30Min. | 1.40 | 1250 | 4.80 | 0.480 | 6.00 | 0.600 | 25.0 | |
60 | 1.60 | 1550 | 3.90 | 0.390 | |||||||||
S9R60GD() S9R60GD()(TP) S9R60GD()CE | 4 | 60 | 1 ø 200 | 50 | 30Min. | 0.70 | 1250 | 4.80 | 0.480 | 5.50 | 0.550 | 6.0 | |
60 | 0.76 | 1550 | 3.90 | 0.390 | |||||||||
S9R60GE() S9R60GE()CE | 4 | 60 | 1 ø 100 | 50 | 30Min. | 1.40 | 1250 | 4.80 | 0.480 | 5.90 | 0.590 | 25.0 | |
60 | 1.60 | 1550 | 3.90 | 0.390 | |||||||||
1 ø 115 | 60 | 1.30 | 1600 | 3.90 | 0.390 | 6.00 | 0.600 | 20.0 | |||||
S9R60GX() S9R60GX()CE | 4 | 60 | 1 ø 220 | 50 | 30Min. | 0.63 | 1250 | 4.80 | 0.480 | 5.90 | 0.590 | 5.0 | |
1 ø 240 | 0.67 | 5.00 | 0.500 | 6.30 | 0.630 |
MODEL | GEAR RATIO | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 500 | 416 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | 7.5 | |
S9KC□B() S9KC□B()-S | kg-cm | 12.2 | 14.6 | 20.3 | 24.3 | 30.4 | 36.5 | 40.5 | 45.6 | 54.8 | 65.7 | 73.0 | 82.5 | 99.0 | 119 | 132 | 165 | 198 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
N-m | 1.196 | 1.431 | 1.989 | 2.381 | 2.989 | 3.577 | 3.969 | 4.469 | 5.370 | 6.439 | 7.154 | 8.085 | 9.702 | 11.66 | 12.94 | 16.17 | 19.40 | 19.60 | 19.60 | 19.60 | 19.60 | 19.60 | 19.60 | 19.60 |
MODEL | GEAR RATIO | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | |
S9KC□B() S9KC□B()-S | kg-cm | 9.72 | 11.7 | 16.2 | 19.4 | 24.3 | 29.2 | 32.4 | 36.5 | 43.8 | 52.6 | 58.4 | 66.0 | 79.2 | 95.0 | 106 | 132 | 158 | 177 | 200 | 200 | 200 | 200 | 200 | 200 |
N-m | 0.953 | 1.147 | 1.588 | 1.901 | 2.381 | 2.862 | 3.175 | 3.577 | 4.292 | 5.155 | 5.723 | 6.468 | 7.762 | 9.310 | 10.39 | 12.94 | 15.48 | 17.35 | 19.60 | 19.60 | 19.60 | 19.60 | 19.60 | 19.60 |
MODEL | GEAR RATIO | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 500 | 146 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | 7.5 | |
S9KD□B | kg-cm | 12.2 | 14.6 | 20.3 | 30.4 | 36.5 | 40.5 | 45.6 | 54.8 | 65.7 | 73.0 | 82.5 | 99.0 | 119 | 132 | 165 | 198 | 221 | 266 | 295 | 300 | 300 | 300 | 300 | 300 |
N-m | 1.196 | 1.431 | 1.989 | 2.381 | 2.989 | 3.577 | 3.969 | 4.469 | 5.370 | 6.439 | 7.154 | 8.085 | 9.702 | 11.66 | 12.94 | 16.17 | 19.40 | 21.67 | 26.09 | 28.93 | 29.42 | 29.42 | 29.42 | 29.42 |
MODEL | GEAR RATIO | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | |
S9KD□B | kg-cm | 9.72 | 11.7 | 16.2 | 19.4 | 24.3 | 29.2 | 32.4 | 36.5 | 43.8 | 52.6 | 58.4 | 66.0 | 79.2 | 95.0 | 106 | 132 | 158 | 177 | 212 | 236 | 283 | 300 | 300 | 300 |
N-m | 0.953 | 1.147 | 1.588 | 1.901 | 2.381 | 2.862 | 3.175 | 3.577 | 4.292 | 5.155 | 5.723 | 6.468 | 7.762 | 9.310 | 10.39 | 12.94 | 15.48 | 17.35 | 20.79 | 23.14 | 27.42 | 29.42 | 29.42 | 29.42 |

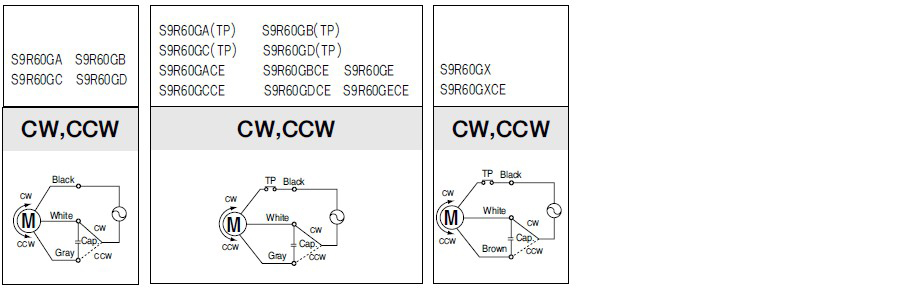

회전방향은 MOTOR의 SHAFT 끝쪽에서 볼 때의 회전방향입니다.
